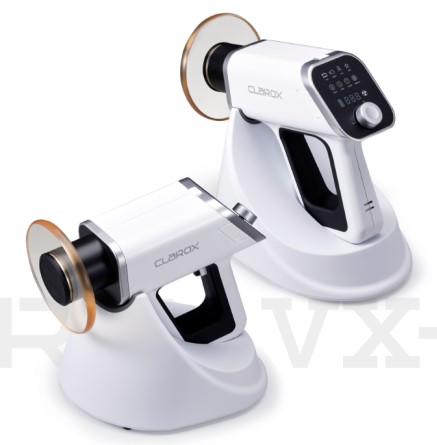

Clarox VX-30 Portable Handheld Dental Intraoral X-Ray Unit

Clarox VX-30 Portable Dental Intraoral X-Ray Machine

Equipped with a CNT (Carbon Nano Tube) digital X-ray tube, it produces high-speed, microscopic, high-efficiency,
and high-definition images with low exposure.

Industry Best 3-Year Warranty- Serviced in the USA!

FDA510K number is K221286

Clarox VX-30 Dental Handheld X-Ray Brochure

.

Clarox VX-30 Portable HandHeld Dental Intraoral X-Ray Unit

reg $ 5,999   Sale $ 4,199

.

Low Power Consumption / 800Shots
Low Dose / Less Radiation Exposure
Long Life / over 150,000 Shots
Light Weight(1.5Kg / Easy to Use)
Small focal spot 300um is Clear picture quality

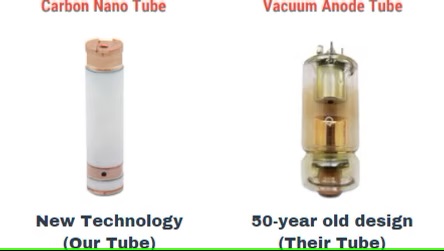

The Carbon Nano Tube Leapfrogs the Older Filament, Vacuum style.

Anode X-ray Tube Design Hasn't Changed Much in Over 50 years. Until Now!

Low Power Consumption / 800Shots

As a transmission type tube, it provides a clear image with a small current, so power consumption is low, so it can be used more than 500 shots on a full charge.

Low Dose / Less Radiation Exposure

As a transmission type tube 1 mA Tube Current (Transmission Type)

Long Life over 150,000 shot

Using a filament-free CNT digital tube, it has a long life and light weight. So, it is very easy to use, too.

No Risk of oil Leakage

No risk of leakage due to solid molding (liquid molding can cause leakage due to cracks in joints caused by expansion and contraction during heating and cooling in use)

Clear picture quality
(Small focal spot 300um) VX-30 measures using a lower voltage tube than competitors, preventing unnecessary radiation exposure.

Light Weight(1.5Kg) 3.3Lbs

It is convenient to use due to its gun-type grip and light weight.

Clarox VX-30 Handheld X-Ray Specifications

Model VX-30
AC/DC Adapter Rated power Input : 100-240Vac, 50/60Hz, 0.4A / Output : 25.5Vdc, 0.9A
Rated power of rechargeable batteries 22.2Vdc, 1460mAh
kVp 70kV
mA 2.0mA
Irradiation time 0.12s-1.2s
Focal size(FSS) 0.4mm(complied with IEC 60336)
SSD 200mm
Total filtration 2.6mm AI
Target angle 12.5?
Anode heat capacity 200W

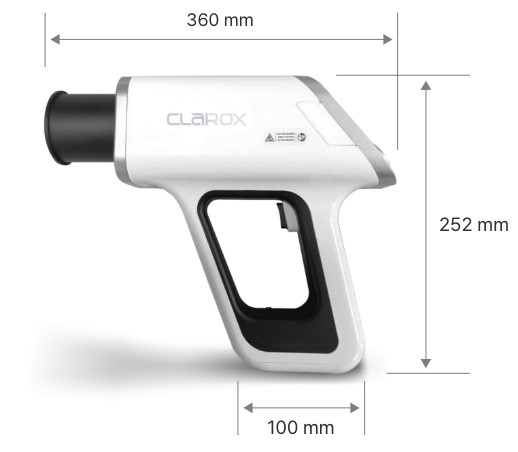

Dimensions (main body) 360x100x252(mm)
Weight (main body) 1.5kg -3.3Lbs

.
