Rayos DC Intra-Oral X-Ray Unit

RayOs-DC High Frequency Intra-Oral X-Ray System

Incredible clarity and ease of use makes this 0.4 focal spot the unit you want to buy. The Rayos DC is affordable and easy to install with multiple mounting options and arm lengths. Rugged tubehead design and arm testing to eliminate premature failure.

The Skanray high frequency intra-oral X-Ray System comes with a clear LCD display, factory set parameters, and customizable settings that can be stored for ease of use. It’s 0.4mm focal spot will provide the highest quality image when paired with a quality image capturing device.

Available in three different lengths (15", 24", or 32" making total arm length 66",75", or 84"), the SkanRay arms are stable and easily adjustable. The high gloss polyurethane finish proves to be durable and easy to clean. These units can be wall mounted or the choice of adding a stable heavy casted base is also available. The Skanray comes with a 2 year warranty.

.

RayOs-DC High Frequency Intra-Oral X-Ray System

reg $ 3,999

 Sale $ 2,719

.

User interface
• Graphic LCD display, (Switchable to Human or Vet)
• Factory set parameters for Film, digital sensor and PSP
• Three custom settings for user to store preferred settings
• Option to select short and long cone for exposure
• Anatomy selection option
• kV settable from 55 to 70 (fixed at 65 by default)
• mA settable from 4 to 8 in steps of 1mA
• Capable of working with two consoles (internal & external)
• Option to integrate doorbell switch with external console for two hand operation
• Audio / visual exposure warning system
• Feedback of actual exposure parameters

Finish & Ergonomics
• High gloss easy to clean plastic parts
• High gloss Polyurethane paint for durability & ease of cleaning
• Design without brakes avoiding field adjustments
• Clear graphic display for user friendly interfacing
• Multiple arm length to suit requirements of every clinic

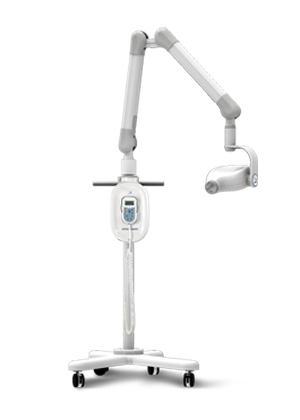

• Heavy casted base for stability of Mobile units
• Settings either from internal or external console working simultaneously

Balanced & stable arm
• Arm stable over 200,000 cycles of operation
• Available with 24 in. short, or 32 in. long arm
• Easy external adjustment of arm
• Cable life of over 200,000 operations

Wide input range with PFC correction
• PFC makes input current clean with low harmonic content
• Unit works from 99V to 253 V AC giving constant and stable X-ray output

Low leakage radiation & patient Dose
• Leveraging of DC technology to reduce soft radiation and exposure time
• Patented shielding method which makes leakage close to zero at 1mt distance
• Recessed X-ray tube for ease of positioning for certain anatomy
• Built in safety to avoid unintentional X-ray exposure

Same unit as ImageWorks DC Imagescan HD Intraoral X-Ray Unit.
