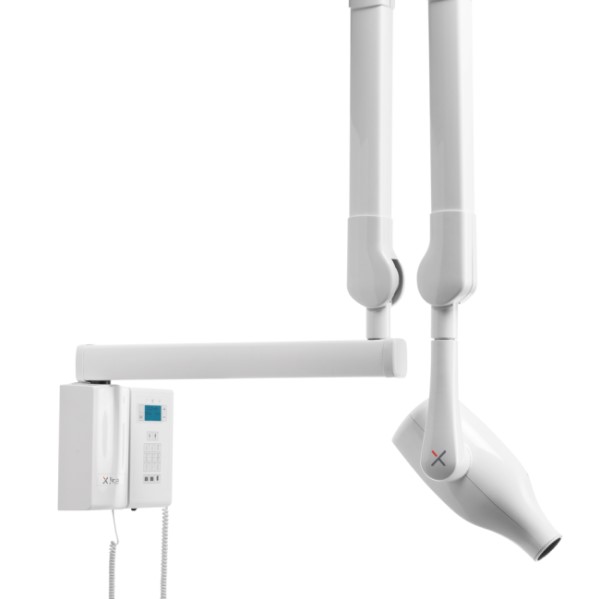

Xline XDC Intra-Oral Dental X-Ray Machine

X-Line XDC Intra-Oral Dental X-Ray Unit

Excellent image quality
High Frequency DC generator for your needs
This state of the art Xline DC X-Ray device with its modern design will fit perfectly into your dental studio and has the flexibility to give you excellent image quality in all your clinical cases. Its technology is fulfilling the highest standards for low dose digital imaging and with three presets, for all receptor types, is universally usable for digital sensors, phosphor plates or films..

Ergonomic positioning
The light, solid and stable arm assures smooth movement and reliable positioning. Thousands of satisfied customers use Xline XDC and experience the ergonomy, ease of positioning and final position stability every day.

Xline XDC X-Ray Unit is the choice of dentists worldwide, and has already proven its ease of use, precision and reliability.

It delivers high image quality even in the most demanding working conditions, both with high
resolution receptors and the finest grain films.

Xline XDC Wall Mounted Dental X-Ray Unit Brochure

.

XLine XDC Intra-Oral Dental X-Ray Unit

reg $ 4,499  Sale $ 3,119

.

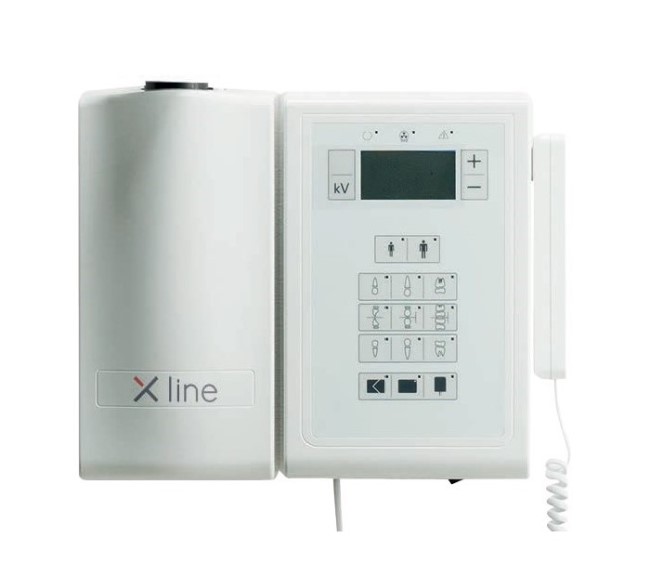

Easy-to-use control panel
Select the tooth type, patient size and receptor technology and you are ready for exposure. Preset exposure program selection is fast and easy allowing you to save time while being sure that you will receive a high quality radiograph.

Finest focal spot 0.4
Acquire high image quality with every exposure. Thanks to the finest focal spot of 0.4 XDC delivers sharp images with optimal details, both with high resolution sensors and finest grain films. Finest focal spot of 0.4 for excellent image quality. Perfect combined with our intraoral X-Ray sensor StarX PRO

Precise setting for all exposures
Obtain the most appropriate exposure setting by selecting among 2 patient sizes, 9 programs and 3 detectors. Optional DAP available.

Proven solution
Automatic correction for mains voltage fluctuations, full protection against tube over heating with accurate cool down procedure and back up timer will make XDC your reliable companion for years to come. Thousands of units installed worldwide provide high quality imaging every day.

Easy to install
XLine XDC X-Ray Unit will flexibly adopt to the layout of your clinic. Timer and hand switch can be remotely mounted allowing the control of the exposure from outside the X-ray room.

The contrast you prefer
Get the image information you are looking for. Select the voltage 60 kV for perio application to reveal statement of ligaments or 70 kV for endo to see more hard tissue contours.

XLine XDC X-Ray Unit Technical Specifications

Generator Direct Current (DC)
Focal Spot 0.4 (IEC 336/1997)
Tube voltage, tube current 60/70 kV (selectable), 7 mA
Line voltage 100/230V, 50/60 Hz
Focus - skin distance Standard 20cm (optional 30cm)
Exposure time 0,01 - 3.2 s / 0,07 - 22,4 mAs
Patient Sizes Adult, Child
Number of anatomical regions presets: 9

Options

Choose among 4 different extension arm lengths to make your intraoral unit perfectly ?t into your dental studio. You can select standard 30 cm, 60 cm or 80 cm and optional 100 cm arm.
Xline’s rectangular beam limiting device (2x3cm or 3x4cm) permits signi?cant dose reduction.
The mobile version is the ideal choice for dental clinics looking for maximum operational flexibility.
20/21 cm standard or 30 cm optional collimator available.
With a cable length of 10 m, the remote hand switch is easy to mount where needed.
