iRay D3/DX3000 Hand-Held Digital X-Ray System |
|
|
iRay D3 Hand-Held Digital X-Ray System
The iRay D3 DX3000 takes dental radiography to a whole new level. With the ergonomic design of the iRay D3 you can point and shoot like a camera. The iRay D3 works with film, digital sensors and PS (photostimulable phosphor) plates. The iRay D3 is wireless, handheld, and completely mobile thus eliminating the need for designated X-ray machine rooms.
With the iRay D3 every room is an X-ray room!
The iRay D3 is unlike conventional wall-mount and portable X-ray systems. The iRay D3 is hand held, lightweight, rechargeable, safe, and is completely mobile. The iRay D3 is dental professionals’ preferred X-ray system in and out of the office. |
-
IRay D3 Mobility
- Camera like mobility and handheld design allows system to be used in any room.
- Ideal for use with children, special needs patients, clinical, hospital, home-health, nursing home, and out-of-office use.
- Camera design is patient “friendly” just point and click.
IRay D3 Safety
- Safe to hold by hand. 1/7 the radiation exposure then conventional systems.
- Rechargeable Li-poly batteries allow up to 300 images on a single charge.
- Works with any radiographic medium: film, digital sensor, PS plates.
- Operator Safe: Certified as SAFE TO USE BY HAND.
|
|
|
|
IRay D3 Affordability
- The iRay D3 cost less than conventional systems. The iRay D3 does not need special construction in terms of shielded rooms, chemical development and dedicating rooms for X-ray.
- The iRay D3 in conjunction with the Rex2 sensor eliminate development charges, time spent developing film, and postage to mail images insurance providers as well as X-ray tech time.
|

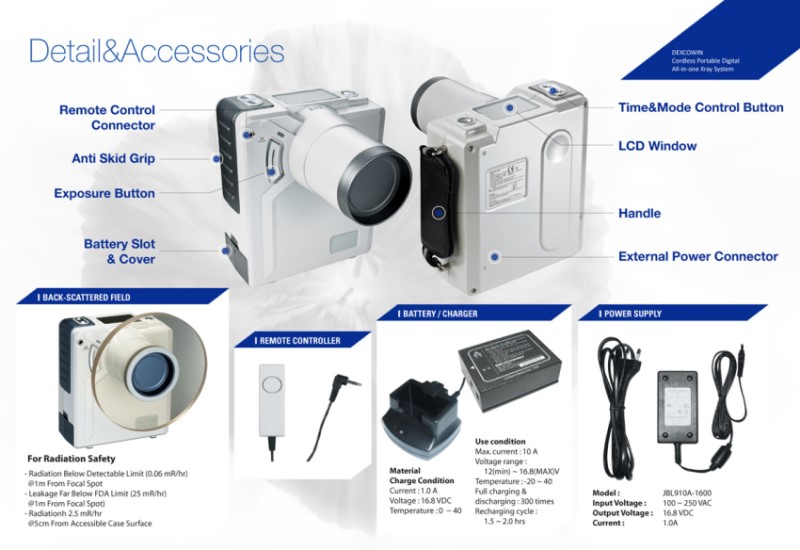

We also offer a 5-jointed stand arm for which you can mount the iRay D mobile X-ray. The iRay D can be fixed to a mobile cart so you still preserve the portable characteristics of the iRay D system. With an included remote control you satisfy any operator who still feels uneasiness with being in the same room as an X-ray machine. Also Known As the Image-Vet FleXX Portable Handheld Dental X-Ray Generator
|
|

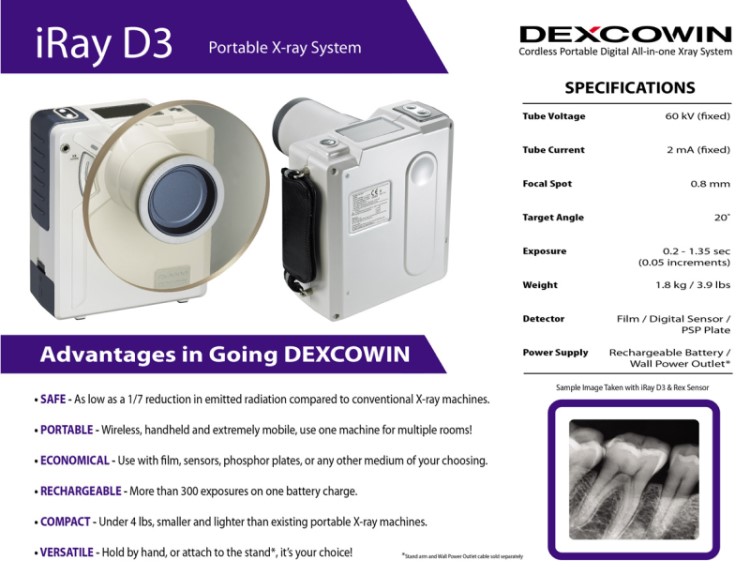

Dexcowin IRay D3/DX3000 X-Ray Specifications
Tube Voltage: 60kV/65kV (fixed)
Tube Current: 1.7mA/2.0mA (fixed)
Focal Spot: 0.8 mm
Target Angle: 20
Exposure Time: 0.05 – 1.35 seconds (can be changed in 0.05 second increments)
Total Filtration: Over 2.3 mm AI (inherent filtration 0.8 mm AI)
Weight: 4.40 lbs (2.00 kgs)
Detector Compatability: Film/Digital Sensor/PSP
Power Supply: DC 14.2-16.8V (rechargeable battery) |
|
|
-
| Digital X-ray |
| Product Name |
iRay D3/ DX3000
|
| X-ray generator |
high frequency |
| Tube voltage |
60kV(fixed) |
| Tube current |
2mA(fixed) |
| Tube type |
Stationary |
| Tube focal spot |
0.8mm |
| Target angle |
20° |
Exposure time
(increse 0.05sec) |
0.05~1.25sec – Digital Sensor
0.20~1.35sec – Film |
| Power requirement |
DC 14.2~16.8V |
| Target Angle |
20° |
| Weight |
1.8kg |
| Detector |
Film / Digital Sensor |
| Power supply |
Rechargeable battery |
| Display |
OLED |
|
iRay D3 DX3000 Digital Hand Held Portable X-Ray Unit
reg $ 8,999 Sale $ 3,759
Black Friday Sale $ 3,299
|
|
