Trident RiX70DC Wall Mounted Dental Intraoral X-Ray

Trident RiX70DC Wall Mounted Dental Intraoral X-Ray Machine

RiX-70 DC
Dental X-ray Unit

Automatic Voltage Transformer

RiX-70 DC appropriately works in a range of 100 to 240 V. The electrical system automatically detects the power wattage, allowing a safe and proper functioning with every voltage.

0.4 mm Focal Spot

The base for an accurate diagnostic is a good image. RiX-70 DC with focal spot 0,4 mm gives you incredibly clear images with a high contrast range.

AUTOMATIC VOLTAGE TRANSFORMER
RiX70 DC appropriately operates in a range of 100 to 240 V. The electrical system automatically detects the power wattage, allowing a safe and proper functioning with any voltage.

0.4 mm FOCAL SPOT
For sharper images with better defined edges.
This focal spot produces less divergence of the X-ray beam from focal spot to receptor which means less penumbra or edge unsharpness around the object.

REDUCTION OF RADIATION DOSE
The high frequency generator allows radiation stability eliminating the soft radiation that does not produce images but can be harmful for the patient.

Trident RiX70DC Dental Intraoral X-Ray Machine Brochure

What does DC stand for?
DC means amazing results with all the advantages of the latest electronic technology: rather than using alternating current, RiX70 DC applies a nearly constant potential to the tube.
This constant potential supplies the tube with DC current, resulting in a constant stream of consistent radiation that maintains the preset kV values even with mains fluctuations.

TUBE VOLTAGE SELECTOR
RiX70 DC operates either 60, 65 or 70 kV allowing to reach excellent results to satisfy your needs: Voltage 60 kV for caries detection or periodontal applications; 70 kV for endodontic applications, including visualization of canals, detection of root fractures and diagnosis of periapical lesions due to pulpal inflammation.

AUTOMATIC SETTING OF EXPOSURE TIME
From 0.01 to 2.0 seconds, depending on the patient and tooth characteristics.

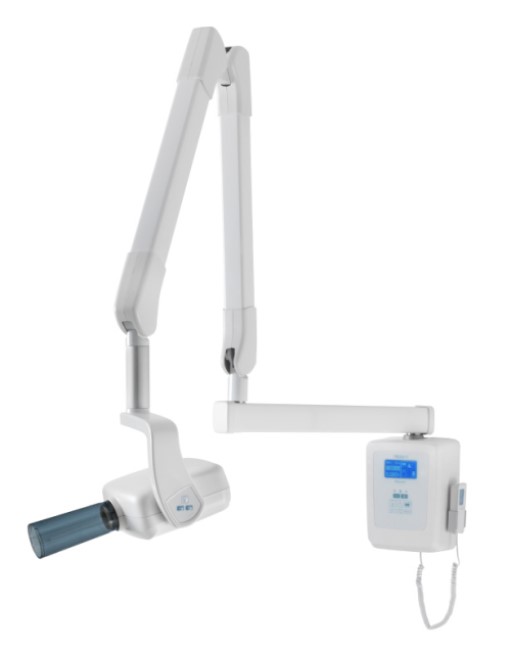

MODERN AND CLEAN DESIGN

RiX70 DC has a super-modern design featuring the flattened generator and transparent cone giving the overall unit the feeling of lightness and clarity.

• Steady and strong support arm.
• Length of the arm 40, 60, 80 and 100 cm.

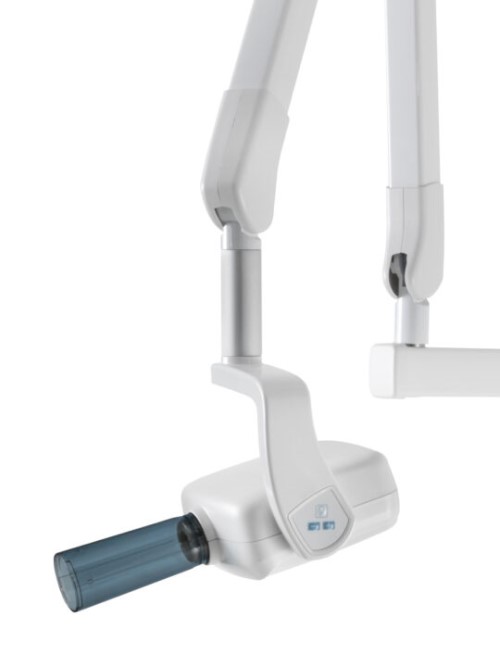

• Compact and light tubehead.
• Hand switch with 3 mt coiled cord.
• Additional keypad installed near the tube head, for manual adjustment of the exposure time and tooth type.
• Intuitive control panel with quickly identifiable icons.
• Easy and fast installation system.


MORE INFORMATION FOR BETTER RESULTS
The display on the timer shows the exposure parameters, errors and warning messages.
The user-friendly and intuitive design of the icons on the timer allows the user to:

Adjust exposure parameters according to the selected patient size, tooth type and image receptor.
Adapt the radiation dose to lower or higher values.
Modify the exposure time for digital receptor or film.
Select between 60, 65 or 70 kVp.

SYSTEM SUPPLY
Supply Voltage AC100-240V
Frequency 50/60 Hz
Electric current 2.7 A @ 240V , 6.4 A @ 100V
Max Power Consumption 640VA (3 AT fuse)
X-RAY GENERATOR
Tube Voltage 60 kVp ± 8% - 65 kVp ± 8% - 70 kVp ± 8%
Frequency 75 kHz
Anodic current 7 mA± 10%
Output radiation linearity < 0.2 according to IEC 60601-2-63
Duty cycle 1:30
Nominal power 490 W (70 kVp - 7 mA)
Total filtration 1.5 mm Al eq. @ 70 kVp
Focal spot 0.4 mm (IEC 60336)
Leakage radiation at 1 m <0,1 mGy/h
Max thermal capacity of monoblock 130J (convection oil bath cooling)
Beam diameter X Ray at 200 mm 60mm (optional 36 x 45 mm rectangular collimator)
Tube Head Manufacturer Canon Skan X - CEI (Italy)
Model D-045 OX70-4
Inherent filtration < 1 mm Al eq. 0.5 mm Al eq.
Filament current Max. 3 A 1.5 – 2.1 A
Focal spot 0.4 IEC 60336:2005
Target material Tungsten

Trident RiX70DC Wall Mounted Dental Intraoral X-Ray Machine

reg $ 5,999   Sale $ 2,995

.
