Owandy Opteo Dental Digital X-Ray Sensor System |
|
|
Owandy Opteo Dental Digital X-Ray Sensors
The concentration of technology makes intra-oral imaging even easier.
Equipped with the CMOS technology, the Opteo intraoral sensor allows for the acquisition of high definition images in all simplicity.
Simple and intuitive, Opteo distinguishes itself especially by its ergonomics and its design. Its rounded corners and its bevelled sides and its remarkable thickness offer to the patient an optimal comfort.

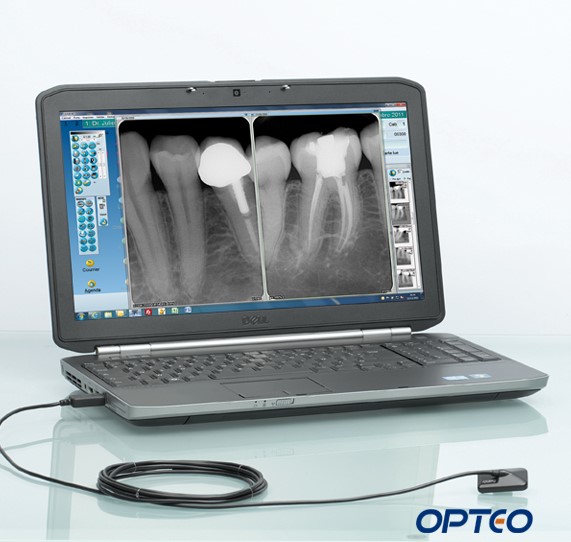

Thanks to its direct USB connection and its 3 meter cable, the opteo sensor is portable: it follows the dentist in his daily practice no matter what the layout of his office.
The integration of the A²-S innovation (Automatic Activation System) further increases the features of the sensor. |
|
Owandy Opteo USB Direct intra Oral Digital Sensor.
Quick Diagnosis:
Cut down on the visualisation time of your x-rays , They are taken instantly in high resolution , No developing or scanning time required.
Optimised patient / Pratitioner Relationship:
Integration of the Aquired images in your patients digital files.
Mobile and Portable Solution:
The X-Rays are processed with the help of digital imaging filters and tools, Network enabled -Information and equipment sharing.
Reduction in the radiation doses, use of non-toxic materials:
Patient safety and enviromental impact taken into account. |
|
|
|
Atraumatic & Ergonomic
The rounded off edges and the Bevelled sides make the Opteo Digital Dental Sensor the Perfect response to your handling and patient comfort requirements. In addition to this, the thickness of the sensor and diameter of the cable have been reduced to a minimum.
The flexibility of the cable and the fact it is positioned high on the sensor guaratee easy positioning in the mouth. There is no risk of Cable rupture , the comfort in the mouth is ideal. |
Extended Sensor Lifespan

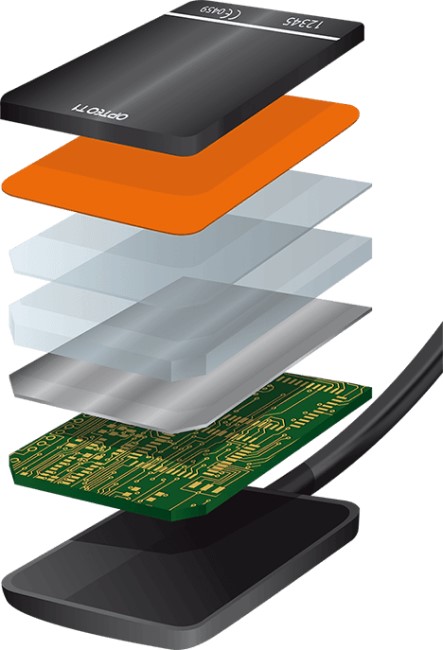

FOP TECHNOLOGY - Energy-Efficient Sensor Design Fiber Optic Plate
The integrated FOP and low-power design significantly extend your sensor's operational life.
X-rays convert to visible light after exposure, though residual X-rays remain post-scintillator. After passing through the FOP, zero residual X-rays persist. |
|
|
|
WSA TECHNOLOGY
"Wide Sensitive Area"
With the Size 1.5 sensor (24x33 mm), you can capture a horizontal radiographic image.
This offers greater patient comfort, and the horizontal positioning of the sensor also allows the practitioner to capture an X-ray of multiple teeth in a single exposure.
Its slim profile enables easy and effortless insertion into the back of the mouth, reducing the gag reflex often associated with this type of exam. Its size is specially optimized for bitewing X-rays—the key examination for detecting interdental cavities and monitoring alveolar bone health. |
High Definition & Percision
The direct USB connection guarantees instantaneous X-Ray image capture. The high definition (20pl/mm) associated to 14 bits grey levels , perfect clarity and ideal brightness and contrast in the images afford excellent legibility of the X-Ray. The large active surface area of the sensor offers an Optimum format for the X-ray image. Your Diagnosis is therefore accurate, Quick and reliable. |
|
The Owandy Opteo Digital Sensor can be used in Endodontics, Parodontics, Prosthetic surgery and Implants , as well as for cavity diagnosis. Moreover , It is completely watertight, giving you complete flexibility in your choice of disinfection method (Immersion, Spraying). 2 Year Warranty, 5 year warranty Available.
Owandy Opteo Digital Dental Sensor Brochure
Owandy Opteo Intraoral Sensor Manual |
Sensor Specifications
Sensor technology:CMOS
Outside dimensions of sensor (length x width x thickness):
39 x 25 x 5 mm (S1)
43 x 31 x 5 mm (S2)
Surface Sensible Taille
30 x 20 mm (600mm2) - (S1)
34 x 26 mm (900mm2) - (S2)
Sensitive surface:
1500 x 1000 pixels (S1)
1700 x 1300 pixels (S2)
Sensor resolution:
Over à 20 pl/mm (S1 et S2)
Length of sensor cable:
3 m
Greyscale:
14 bits (16384 grey levels)
Connection: USB:
USB 2.0 High-Speed (480Mbit/s) et USB 3.0.
2 Year Warranty |
Replacment Parts For Owandy Digital X-Ray Sensors: |
|
|
|
 |
 |
|
 |
|
