QuickRay DX Digital Dental Imaging X-Ray Sensors |
|
|

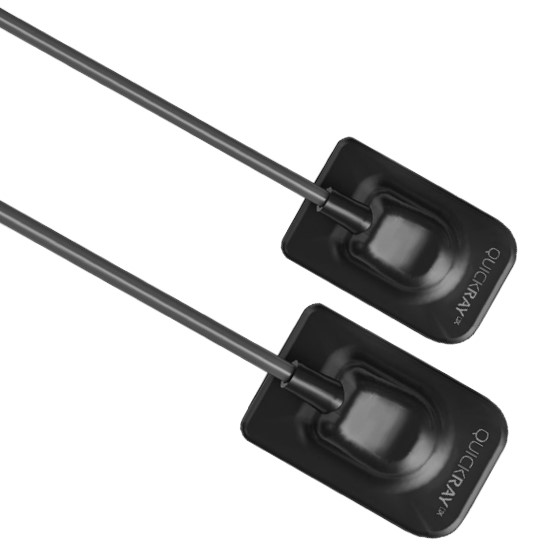

QuickRay DX USB Digital Dental Imaging X-Ray Sensors
What makes the QuickRayDX sensor stand out? The QuickRayDX Digital X-Ray Sensor series offers unparalleled image clarity at the highest resolution while minimizing radiation exposure. Plus, it connects directly to your computer’s USB port, eliminating the need for a special interface box! Compatibility is seamless with the QuickRayDX Connect, allowing integration into any imaging software supporting TWAIN devices.
A significant advantage of QuickRayDX is its speed. X-Ray images are displayed on the dentist’s screen in just ~3 seconds, making it the fastest intraoral dental sensor available! The sensor's thin, durable polyamide housing, less than 1/4" thick, incorporates a CMOS imaging sensor chip, CSI Scintillator, electronic circuits, shielding foils, polyurethane cable, and shock absorbers.
Backed by a 2-year warranty and a 7-year "out of warranty" replacement plan, the QuickRayDX offers peace of mind. With all these benefits, the real question is, "Why wouldn't you choose QuickRayDX?"
QuickRay DX Dental Imaging Sensor Brochure |
|
Are you still using film?

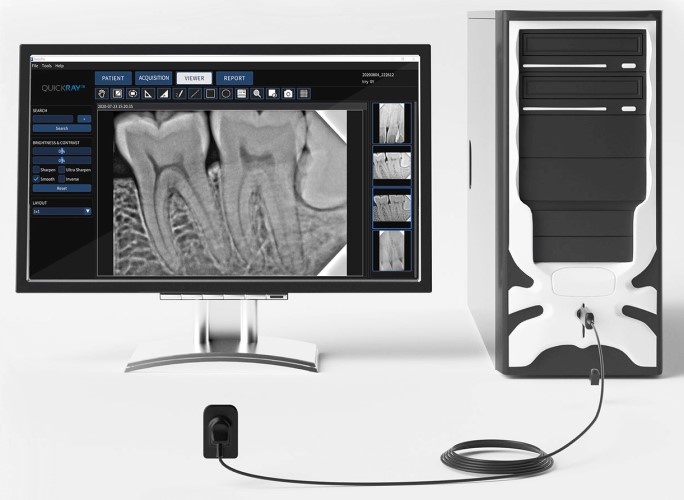

We can get your images into digital format to view on a computer using our new QuickImage imaging software, which is universally compatible along with our QuickRay DX Imaging sensor.

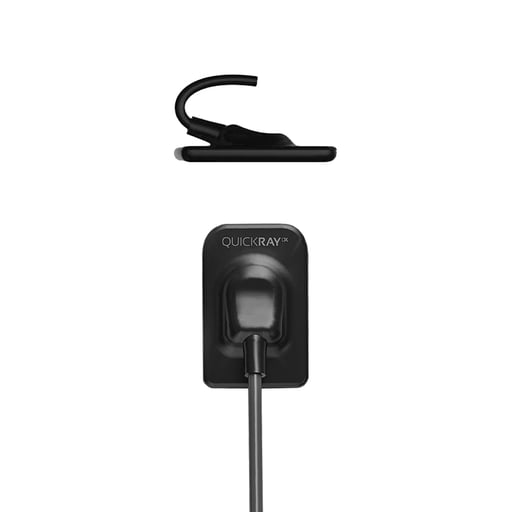

The QuickRay DX sensor gives you the highest resolution and clarity! The thin (less than 1/4″) intraoral sensors include a CMOS image sensor chip, CsI Scintillator, electronic circuits, shielding foils and shock absorbers. Tough polyamide housings have durable replaceable polyurethane cables with ergonomically placed connectors. Their rounded corners and smooth edges optimize patient comfort.
Whats Included in the Box
Size 1,or 2 Direct USB, CMOS chip, Windows Compatible, 2 year warranty. Includes: UNI-VERSE-ALL Positioning Kit, (1) Silicone Cover, Wall Mount
Holder, 100 ct Sheaths and Extension Cable. Twain included. |
|
|
|
Imaging Software Options
All QuickRay DX Imaging sensors can Connect is available for users of Dexis, Schick, Kodak, VixWin or other common products.
QuickRay DX Mac is available for users of MacPractice or RadioVision.
Warranty Against Defect
We guarantee our sensors against defect during the warranty period, which is 2 Years. Should a problem arise, we’ll overnight a loaner to the customer for a nominal fee while the sensor is tested at the factory. If it’s defective, we’ll replace it with a new sensor.
Professional Quality 1/10
Cost per patient compared to film
3seconds
To complete entire imaging process
50000+
Exposures with no quality loss |
Features & Benefits of QuickRay DX Imaging Sensors
CMOS technology with scintillator
2 Sensor Sizes (#1 & #2)
4096 grayscale levels (12-bit image)
Direct USB Connection
Built in USB 2.0 Interface
Plug and Play functionality
Two sensors may be operated at the same time
Image transfer and control via computer system
12 bit image digitalization
16 bit uncompressed image file
Well-defined software interface standard or 2×2 binned imaging modes
Intelligent Auto Trigger
Theoretical Resolution of 25 lp/mm
Real Resolution of >20.00lp/mm or 0.05mm image detail
Signal to noise ratio: 40 dB
Scintillator: CSI depositing on fiber-less sub-strate
3 yr warranty & 7 yr Out of Warranty Replacement Plan
CMOS chip material
Rounded Corners for Patient Comfort
Replaceable sensor cord : Yes
Supports MAC: With Purchase of QuickRay Mac
Bridges to major softwares: Yes- With Twain Driver Included
Recommended Exposure: 65KVP, 0.08msec
Direct or Indirect: Direct
Sensor Resolution (lp/mm): 25
Sensor attachment to base: Direct
Time from exposure to image: ~3-5 seconds
Image Size: 3MB – 5MB
DICOM compliant: Yes
Twain Driver Included: Yes |
|
|
|
|
 |
 |
|
 |
|
