XCube 2.0 Dental Implant Motor System

Saeshin X Cube 2.0 Surgical Implant Motor System

Economical and simple to use implant motor “XCUBE”

• Motor auto-calibration function

• E-type motor with ISO standard connection

• Maximum speed at 2,500 RPM with 20:1 gear ratio

• Maximum torque at 55 N.cm with 20:1 gear ratio

• Actual working condition displayed on screen

• Automatic overload protection system

• 9 programs memory function

• Motor & angle are autoclavable

The X CUBE Dental Implant Motor from SAESHIN is a powerful, user-friendly surgical Implant motor system used for general oral surgery, implantology as well as for all kinds of micro surgery procedures. SAESHIN has been manufacturing precison micro motor handpieces since 1976 and is globally recognized for its research, development, and quality control. This Dental implant System is the best value in the industry and comes with everything needed to start doing Implants tomorrow.

reg $ 3,999  $ 1,419

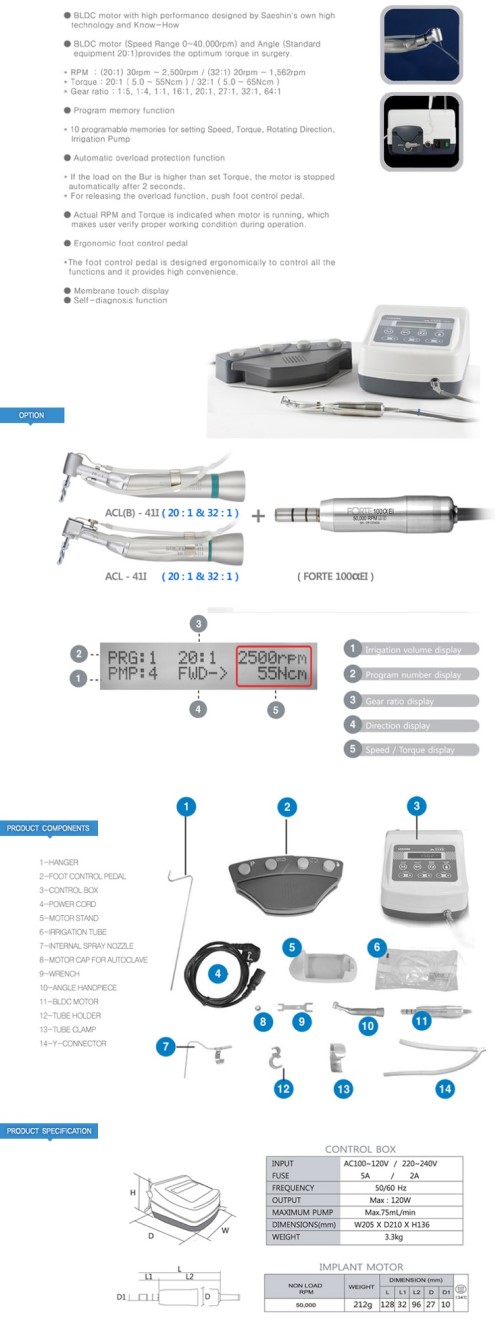

X-Cube Dental Implant Motor Instruction Manual

Saeshin X Cube 2.0 Surgical Implant Motor System

With Contra Angle

Reduction geared contra angle with internal and external irrigation.

-Push Button & Lever Type  - Your Choice - Same Price
-Reduction Gear Ratio ( 16:1, 20:1, 32:1, 64:1 ) - Your Choice - Same Price
-Torque: 20:1 (5.0 ~ 55 Ncm)
-with 20:1 Angle: 30 - 2500 RPM
-with 32:1 Angle: 18 - 1562 RPM
-Gear ratio: 1:5, 1:4, 1:2, 1:1, 16:1, 20:1, 27:1, 32:1, 64:1, 256:1
-1 Year Warranty

-Ergonomic and quick operation of every function during surgery

X-Cube Compact designed control box with various functions

-Eye-appealing LCD and simple interface
-10 types of gear ratio setting
-10 program memory for setting the speed, torque, operation direction, water pump
-quiet and strong water pump ( 5 stage - control)
-Dimension W205 x D210 x H136
-Weight 7.3 lbs
-Max Torque 55 N.cm

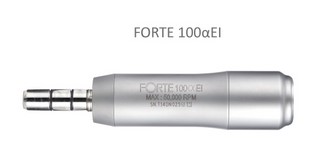

BLDC motor with high performance E-type Motor (FORTE 100αEI)

Surgical BLDC motor first made in KOREA with high technology and know-how

-Speed control from 600 to 50000 rpm and strong torque
-no noise and vibration helps to improve the concentration in surgery
-Non-optic
-Max. 50,000 RPM(1:1)
-Weight 9.5 oz
