Midmark M3 UltraFast Automatic Sterilizer and Autoclave |
|
Midmark M3 UltraFast Automatic Sterilizer
The Midmark M3 UltraFast® Automatic Sterilizer is everything you need in an autoclave. Sterilize unwrapped instruments and handpieces in just 6 minutes and pouched instruments in just over 10, with the touch of a button. The M3 is the simple, intelligent and fast choice for your sterilization needs. |
|
Features
-

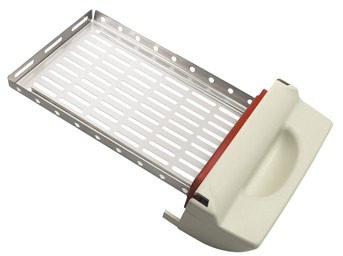

One-step loading
-

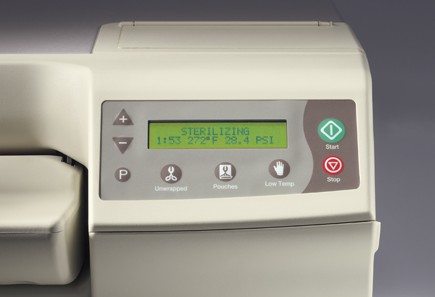

Push-button cycle selection
-
Automatic-opening door
-
Intelligent features monitor water levels for worry-free operation
-
Dries instruments in as quickly as 25 minutes
-
Top fill for convenient access to water reservoir
-
Front reservoir drain with on-board drain tube storage
-
Condensate tank with quick release lid, convenient carrying handle and water level sensor
|
|
|
Fast When your practice requires instruments and handpieces to be processed quickly, the M3 delivers. Sterilize unwrapped instruments in only 6 minutes and pouched instruments in just over 10 minutes. Reliable You need to feel confident that the sterilizers in your practice will function efficiently and effectively every day. As with the entire Midmark sterilizer line, the M3 is designed and built to last, successfully completing more than 100 specific product component and full product life tests. Dry In accordance with CDC guidelines, instruments and packaging must be dry after a sterilization cycle and prior to handling. Chamber surface heaters remove moisture during the dry cycle, allowing the M3 to effectively dry an instrument load in as quickly as 25 minutes. |
Convenience The M3 is real convenience. From the simple way you load and unload the tray to the thoughtful touches like the ergonomic condensate tank handle and quick-release top, the M3 is sophisticated technology that is easy to use. Technology The M3 has integrated technology to inform the operator if reservoir water is low or if the condensate tank is full...eliminating the need to continually monitor water levels. Relax...we've got you covered. Automatic Once one of the three pre-programmed cycles is selected, the M3 automatically sterilizes without any operator assistance. At the end of the sterilization cycle, the patented automatic door opens to begin the drying process. Simply load it, set it and forget it.
Midmark M3 UltraFast Autoclave Brochure |
|
Ritter M3 UltraFast Automatic Autoclave
Reg $ 6,999 Call For Price
|
Specifications
|
Overall length w/plug: 22" (55.9 cm) Overall width: 17.8" (45.2 cm) Overall height: 6.9" (17.5 cm) Countertop area: 24" (61 cm) D x 22" (55.9 cm) W Chamber: 12.1" (30.7 cm) L x 7.6" (19.3 cm) W x 1.6" (4.1 cm) H 0.49 gal. (1.8 liters) usable volume Tray: 11.75" (29.8 cm) L x 7.25" (18.4 cm) W x 1" (2.5 cm) H Holds the Hu-Friedy® Signa-Stat Cassette (6.5" x 10.5" x 1.25") Unit weight: 71 lbs. (32.2 kg) Unit weight with water: 80 lbs. (36.3 kg) Shipping weight: 80 lbs. (36.3 kg) Reservoir capacity: 1.2 gal. (4.5 liters) Electrical Requirements: 115 VAC, 50/60 Hz, 12 Amp Single Phase 230 VAC, 50/60 Hz, 6 Amp Single Phase Heater Power: 1400 watts Maximum Power Consumption: 1400 watts UL Listed to U.S. & Canadian Standards ASME Boiler & Pressure Vessel Code, Section VIII, Division 1 Canadian Registration Number available UL 61010-1, 2nd Edition IEC 61010-2-040, 1st Edition CAN/CSA-C22.2 No. 61010-1 2nd Edition FCC Part 15, Sub-part B A separate (dedicated) circuit is recommended for this sterilizer. Installation: Use on a level, water-resistant surface. For proper air circulation, allow a minimum of 2" (5 cm) clearance on sides and top; 4" (10 cm) clearance behind. Allow proper clearance for access to the reservoir fill port located on top of the sterilizer. Also, allow 14" height clearance for condensate tank. |
|
|
|
|
|
|
|
|
|
