WoodPecker LX16 Diode Dental Soft Tissue Laser

WoodPecker LX16 Diode Dental Soft Tissue Laser

The Lx16 Soft Tissue Dental Laser is a  Innovative Two Wavelengths Blue Semiconductor Laser Therapy Device
Can be used for the fields of dental soft tissue surgery, endodontic sterilization, periodontal sterilization, peri-implantitis, low intensity laser therapy, oral ulcer, and teeth whitening.

Remarkable treatment effect: There is basically no bleeding during operation, maximally minimizing the postoperative swelling, reducing pain of patients, and accelerating the recovery.

Reg $ 5,999   $ 3,539

Complete Accessories:

• Fiber Optical Tips
• TMJ Therapy Tip
• Whitening Tip
• Biostimulation Tip
• Laser Protective Glasses

Fear of dentist is a thing of the past with a WoodPecker LX16 Laser by your side.

Greatest Value on the Market.

The patient feels comfortable with the laser and the treatment goes smoothly, without complications.

Large Capacity Battery

11.1 Volts 2600mAh (57.7Wh) Lithium Battery, Which can be Used for one week on a single Charge.

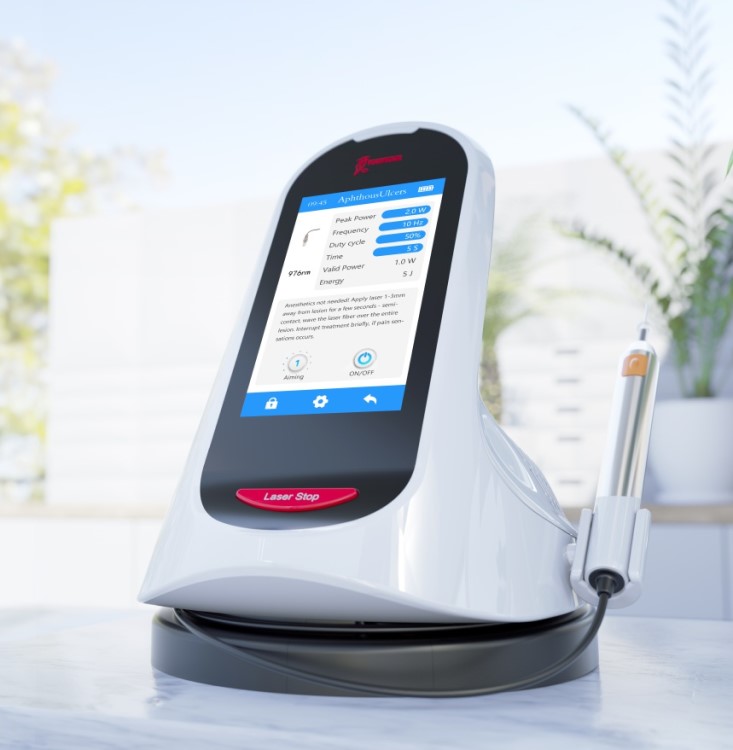

The New LX16 Dental Laser has a 5 Inch Full View Captive Touch Panel With Flat UI Design.

High Power

Up to 16Watts Peak Power Laser Output With a Wavelenght of 976nm and Additional 200mW Laser Output With WaveLength of 650nm.

Which Covers more than 20 Indicators.

Instructions Manual For LX16 Soft Tissue Laser

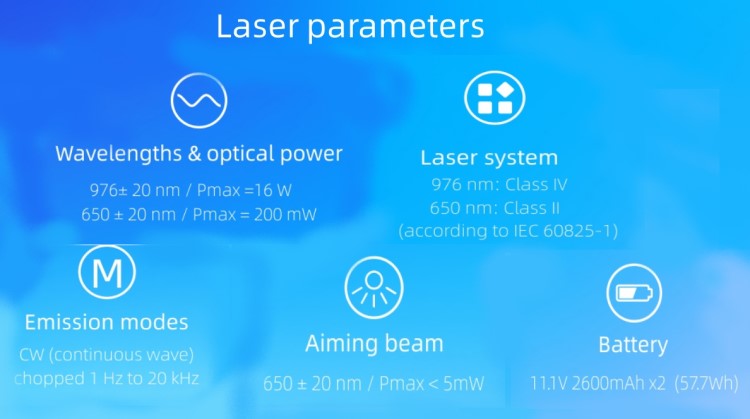

Primary technical parameters For Lx16 Dental Laser

Power adapter input:100-240Vac 50/60Hz 2.5A

Main unit input:15V 6.0A

Wavelength and power:

a)976± 20nm   0.2W-4W(CW), Peak Power 5W

     chopped 1Hz to 20KHz

     chopped mode:5us – 0.9S

b)650± 20nm   25mW-200mW(CW)

Laser classification:

a) 976 nm: Class 4

b) 650 nm: Class 2

Aiming beam: 650 ± 20 nm / Pmax<5mW (class 1 )

Aiming beam:   650 ± 20 nm /Pmax<5mW

Divergence:12.7°(According to IEC 60825-1: 2014)

Rechargeable battery:   11.1V/2600mAh x2 (57.7Wh)

Time consumption for charging: about 4h (5 hours for first charging)

Diverging half angle: 0.22 mad/ 12.6 °

size: 22 cm x 20cm x 23cm

Weight: 1.5kg

Warranty: 1 Year
