Tuttnauer EZ11Plus Steam sterilizer |
|
|
Tuttnauer EZ11Plus Automatic Autoclave-Sterilizer
The newly designed EZ11Plus Sterilizer has a ergonomically friendly EZGlide door features a sleek modern look and effortless opening and closing. Innovative EZView Multi-Color Display offers real time cycle information that is easy to read, even from a distance. The EZView displays cycle parameters, temperature, and pressure in the chamber. During a cycle each stage is displayed with an active color wheel and text.
reg $ 8,729 Discontinued
Tuttnauer EZ11 Plus Sterilizer Brochure
Tuttnauer EZ11P W/Printer
|
|
|
|
Tuttnauer EZ11Plus Autoclave Features:
- Closed door drying, meaning the door remains closed through the dry cycle to maintain sterility and ensure efficient drying. A high efficiency air pump circulates filtered air through the chamber for fast drying. 0.2µ HEPA filter (replaceable).
-
Comprehensive 2 year parts & labor warranty and 10 year chamber warranty.
-
11" diameter X 19.8" deep chamber and flexible loading options. The exceptionally deep 19.8” chamber works in a variety of loading options to suit any office:
-
Use the 5 full sized trays for packs/pouches
-
Use the tray rack (included) to accommodate 4 full plus 4 half sized cassettes…no additional cassette rack to buy!
-
Use the optional Tuttnauer pouch rack (model AR910) to encourage proper loading. One pouch rack is included with each EZ11Plus.
-
Front or top water fill options: accessible EZFill front or top water fill option to enable easier filling of the reservoir.
-
USB Port enables users to easily transfer cycle data via a flash drive to a PC.
- Network Port allows for connection to a local network to provide remote monitoring of the system when used with optional RPCR Software. Network port is located in the rear of the unit.
-
Dynamic Air Removal Technology to effectively remove air from the chamber.
-
Designed to meet the most current sterilization standards ANSI/AAMI ST55.
- Optional printer documents a detailed history of each cycle.
- 2 year parts and labor warranty.
|
|
|
|
|
|
The EZ11Plus automatic autoclave sterilizer simplifies the sterilization process, outpacing demanding workloads with full regulatory compliance. With a larger chamber capacity than other sterilizers, an innovative multi-color display, flexible loading options, closed door drying, and a self locking door, the EZ11 makes sterilization easier and more efficient. A perfect solution for laboratories, medical offices, and other institutions with sterilization large workloads.
Each EZ11 Plus fully automatic sterilizer also features Dynamic Air-Removal Technology and an active, closed-door HEPA-filtered air-drying system to maintain sterility and guarantee efficient drying of packs and pouches. This ensures the door remains closed throughout the entire drying cycle.
Safe Sterilization
EZGlide Self Locking Door - effortless opening and closing with an automatic double safety locking mechanism. Glide the door closed with a gentle push to lock it
Closed Door Drying - door remains closed through the entire drying cycle.
Air Pump - high efficiency air pump circulates filtered air through the chamber for fast drying. 0.2 micron HEPA air filter (replaceable).
Standards and Directives - designed to meet the most current sterilization standards ANSI/AAMI ST55. |
Included In Your Purchase
1 New EZ11 Plus Autoclave Sterilizer
5 Large Trays
2 Year Warranty On Parts & Labor
10 Year Warranty On Chamber
Power Cord
Warranty Card
Chamber Brite Samples |
|
|
|
Easy Sterilization
Capacity - 11" chamber size can store 5 large trays with versatile loading options, meaning more efficient sterilization cycles.

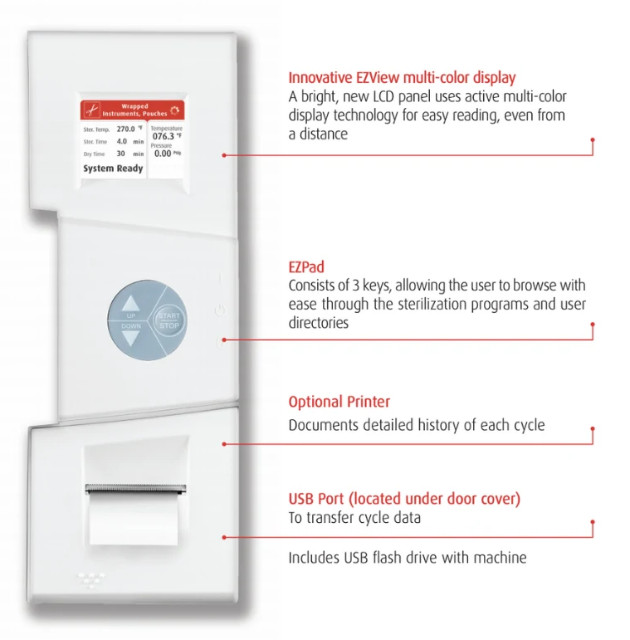

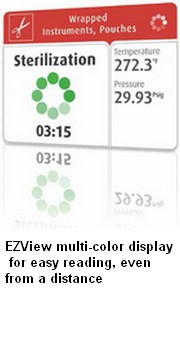

Multi-Color Display - provides real time information indicating program icons and names, cycle parameters, and internal temperature and pressure.
Each phase of the cycle is displayed by a color wheel. Remaining time is displayed during water filling, sterilization and drying phases.
Display available in multiple languages
EZFill Water Filling - accessible front or top water filling options allow easier filling of reservoir.
Optimized Cleaning Program - EZPlus is easy to operate with 4 FDA cleared sterilization programs. Additionally, there are 2 customizable sterilization programs. And a convenient Chamber Brite cleaning program makes for easier maintenance when utilizing Chamber Brite powdered autoclave cleaner. View Sterilization Cycles
Convenient Data Management
Available Printer - documents date, time, pressure, system message, and alerts.
Internal Storage - built in memory to store ~100 cycles of data.
Optional RPCR Software - real-time remote monitoring and automatic download of multiple autoclaves from PCs on local network. Generate and print PDFs from cycle analysis. Automatic download of cycle history to your PC. |
|
|
EZ11Plus Tuttnauer Autoclave Technical Specifications
|
|
Chamber
Dimensions
D x L
In (mm)
|
Chamber Volume
|
Overall Dimensions
DxWxH (in) |
Standard Cassettes Capacity |
Tray Dimensions
DXWxH
In (mm) |
No. of Trays |
Standard Unwrapped Cycle Time |
Voltage (V)
Frequency (Hz) |
Power (W)
Current (A) |
Autoclave Weight
lbs (kg) |
|
11" x 19.8"
(280x504) |
7.5 gal
28.5 L
|
24.8"x20.9"x17.3"
(630x530x440) |
4 full and
4 half |
16.3"x6.7"x0.6"
(413x169x16) |
5 |
Cold: 27 Min.
Hot: 16 Min. |
120
50/60 |
1400W 12A
|
122
(56) |
|
Shipping Dimensions: 29" x 26" x 22" - 130Lbs
|
